    Foam-Gard system diagram

    Surface Preparation

    Pressure-wash the existing roof surface to remove dirt, dust, and contaminants, ensuring maximum adhesion to the substrate. If the SPF layer is exposed for more than 24 hours, Acrylic Bonding Primer 905 may be required to promote proper adhesion.

    Spray Polyurethane Foam

    Apply a high-density, plural-component spray polyurethane foam (SPF) layer based on the substrate at varying thicknesses. This lightweight yet durable insulation barrier enhances thermal performance and structural integrity. For SPF system recoats, the existing spray polyurethane foam layer must be restored to the original manufacturer’s specifications before additional coatings are applied. Contact Technical Services for product information.

    Elastomeric Roof Coating

    Apply an elastomeric coating directly over the SPF layer, selecting from Acrylic 211High-Tensile Acrylic 211Silicone 410High-Solids Silicone 412Aliphatic Urethane 510Aromatic Urethane 520 based on project requirements. The base coat is commonly tinted gray, tan, or ivory to assist with uniform application. The top coat forms a seamless, bright white membrane that delivers superior UV protection, reflectivity, weather resistance, and ponding water resistance.

    Roofing Granules

    Broadcast Roofing Granules into the elastomeric top coat to enhance durability, weather resistance, and impact protection.

    Foam-Gard™

    The 20-year spray polyurethane foam roofing system for commercial flat and low-slope roofs, combining high-density SPF with protective roof coatings to deliver seamless waterproofing, insulation value, energy efficiency, and durable weather protection.

    • Industry-leading insulative properties
    • Seamless, long-lasting, fully-adhering, & self-flashing
    • Excellent reflectivity, UV stability, & weatherability
    • System strength & durability—improves structural integrity
    • Provides a lightweight & energy-efficient air barrier
    • Highly versatile—various top coat options available
    • Long-term material & NDL system warranties available
    • FM Approved
    • UL Classified
    • Miami-Dade Approved
    • Florida Product Approval
    • NSF Certified
    • CRRC Rated
    Contact Sales

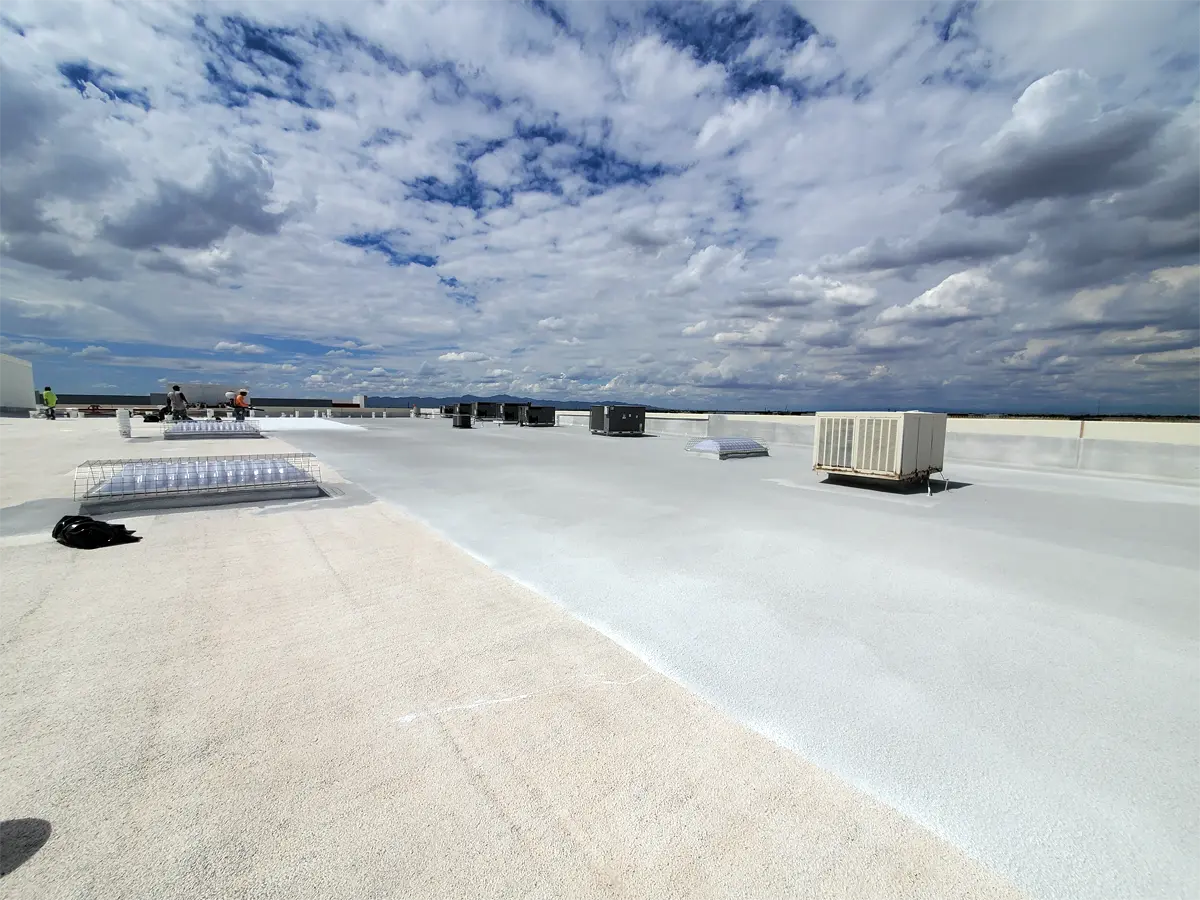

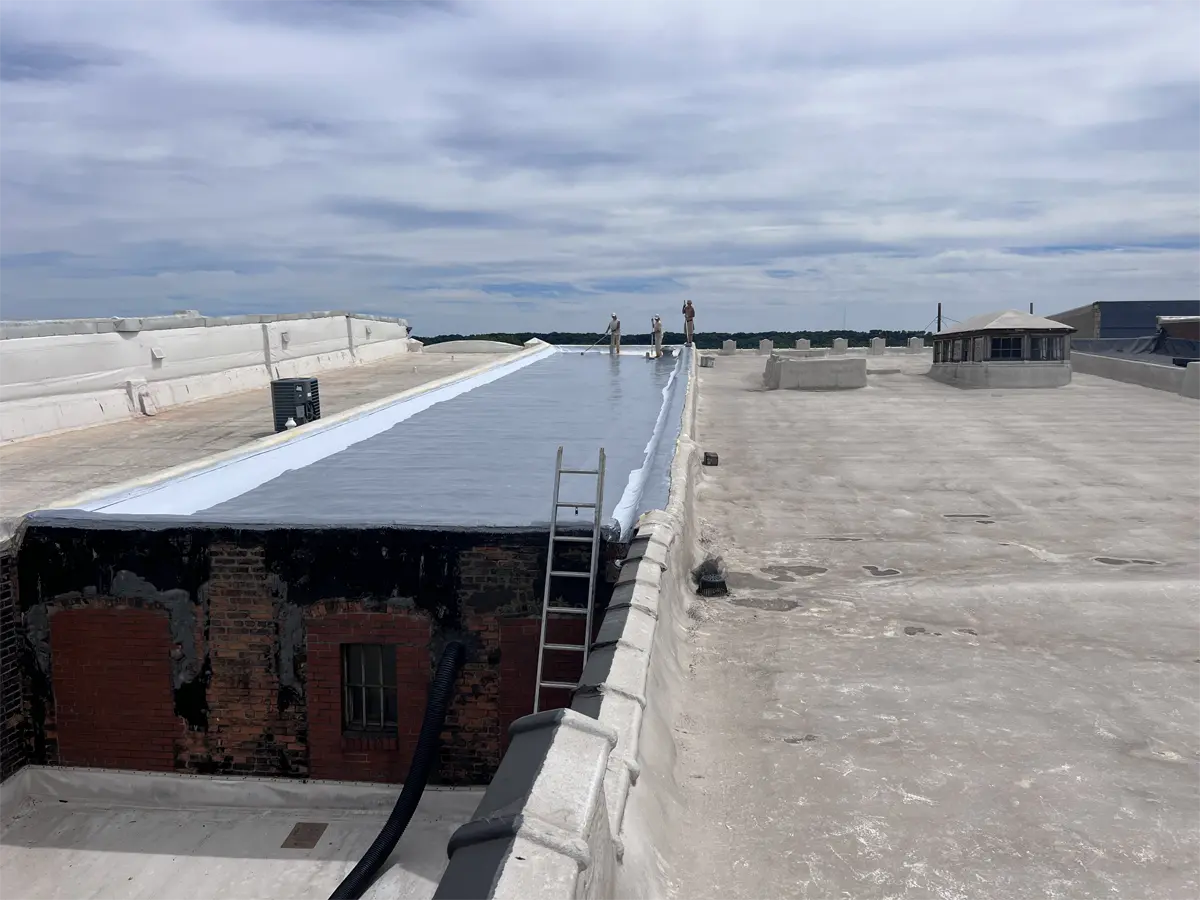

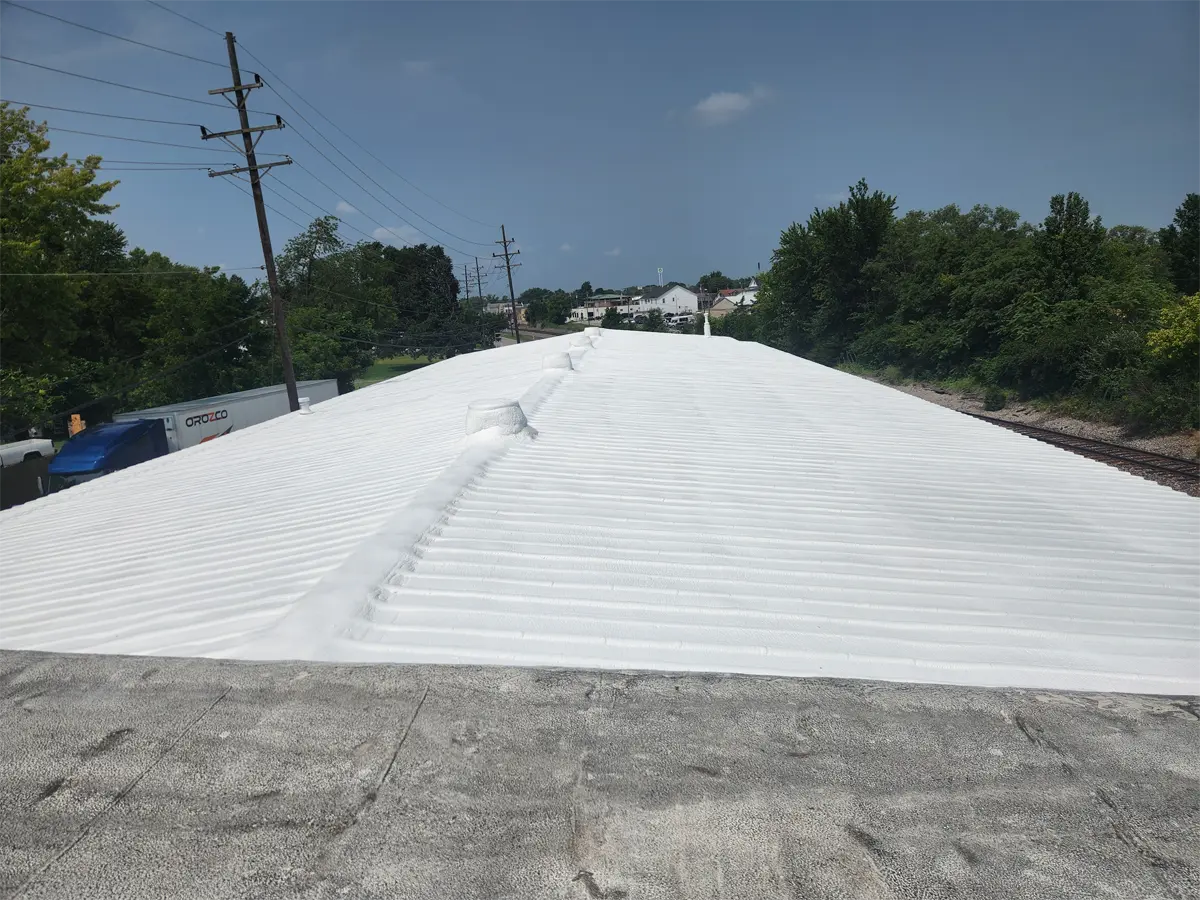

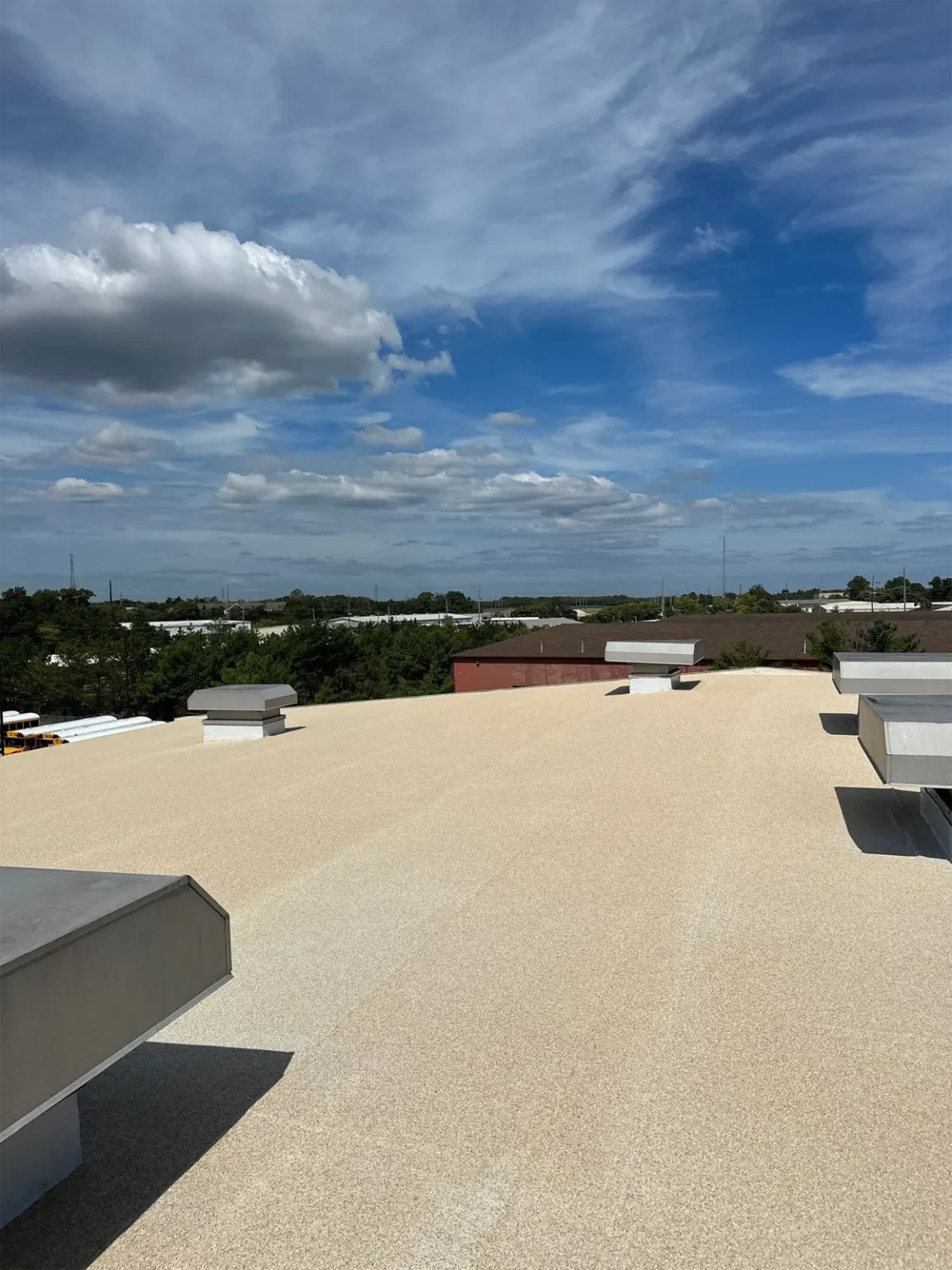

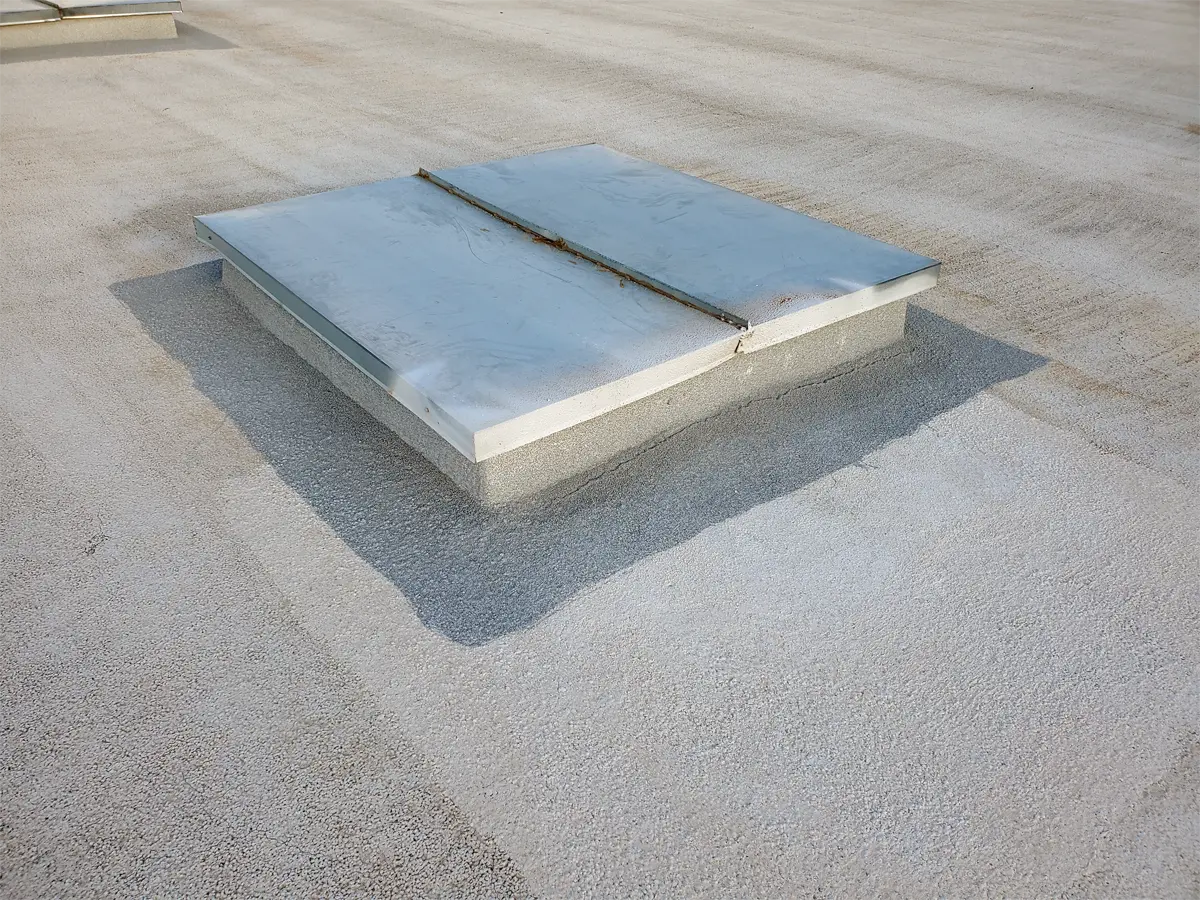

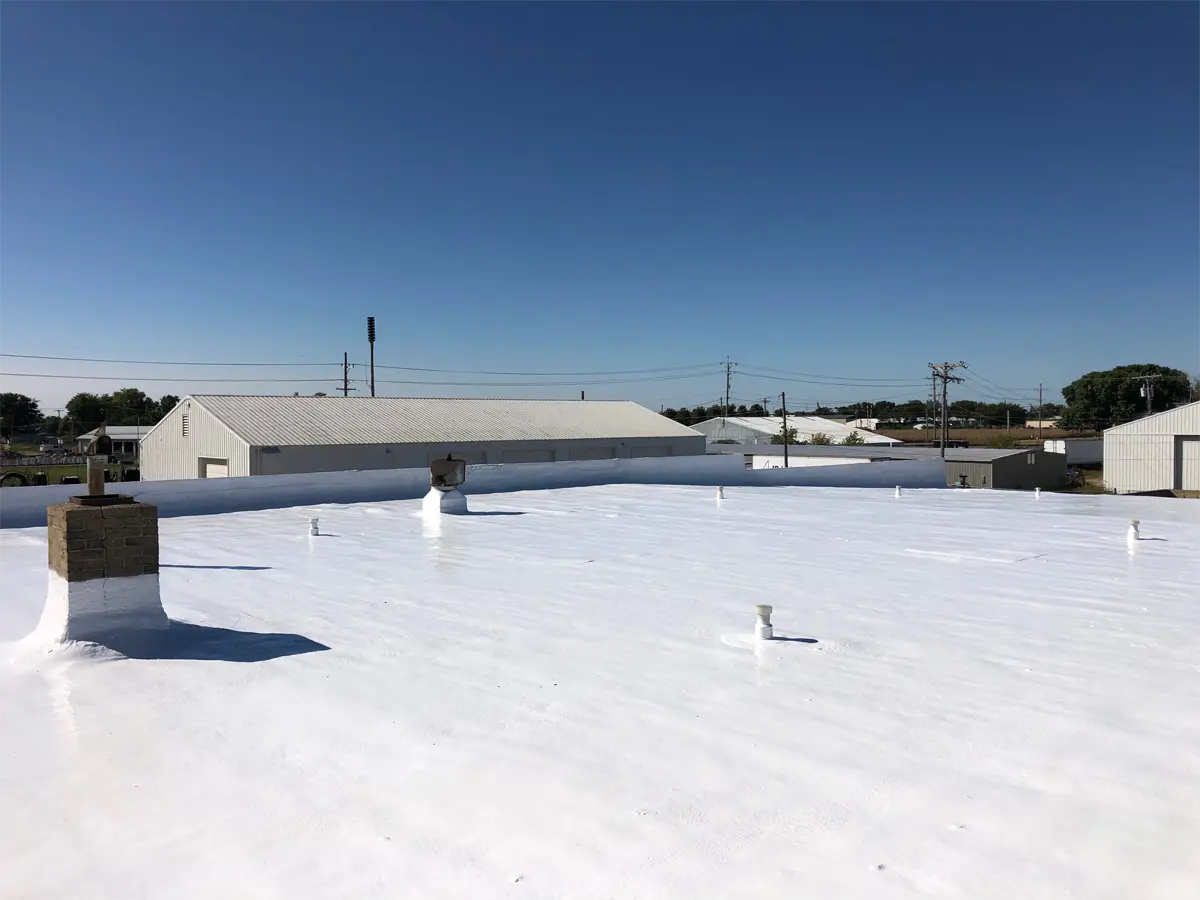

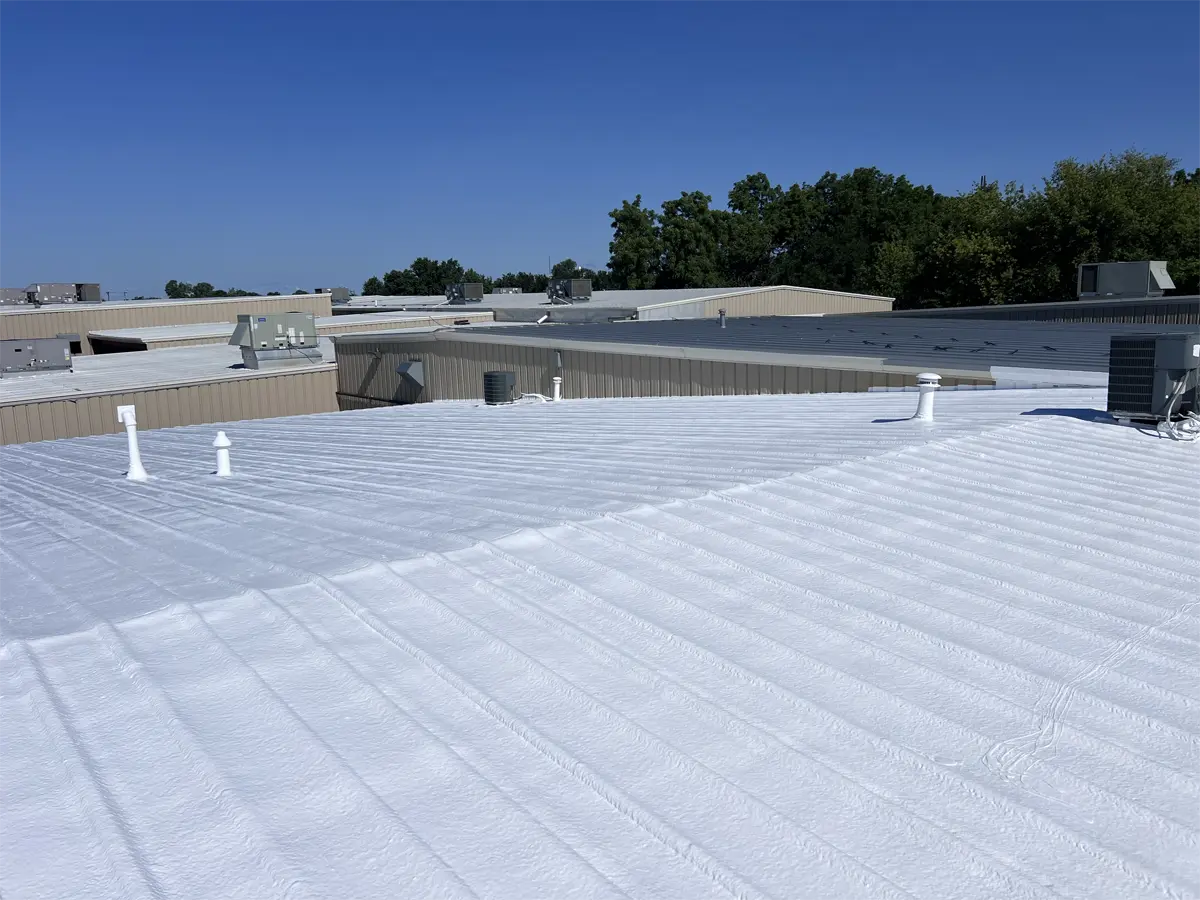

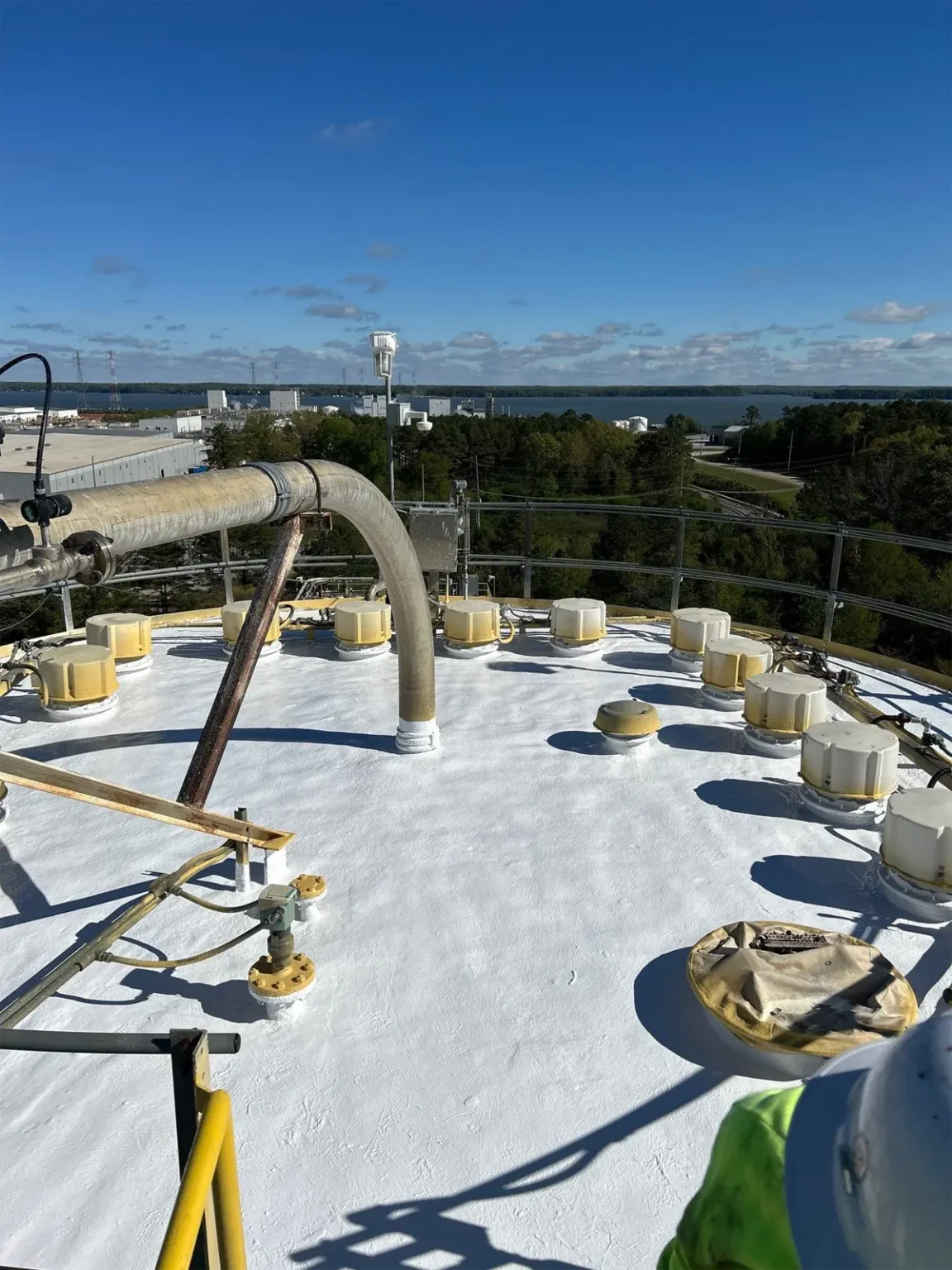

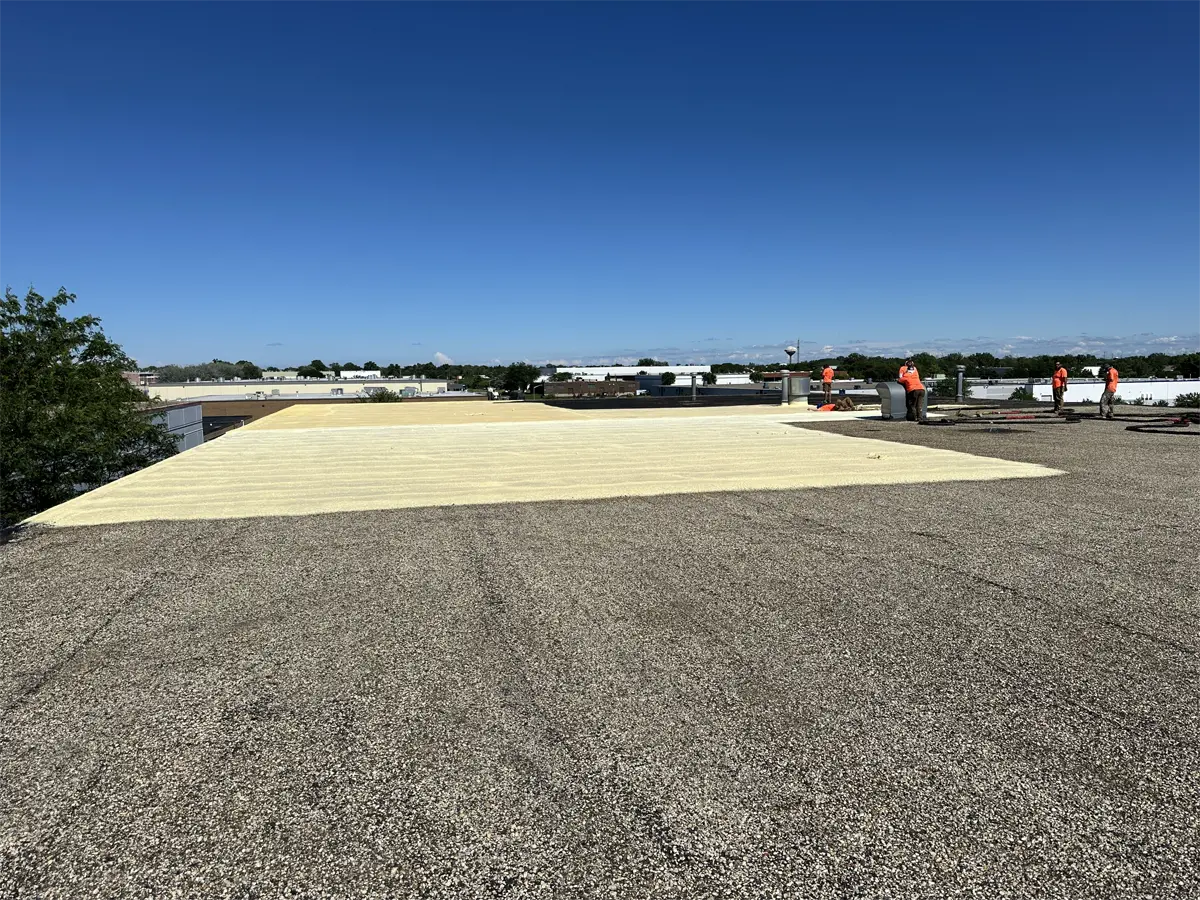

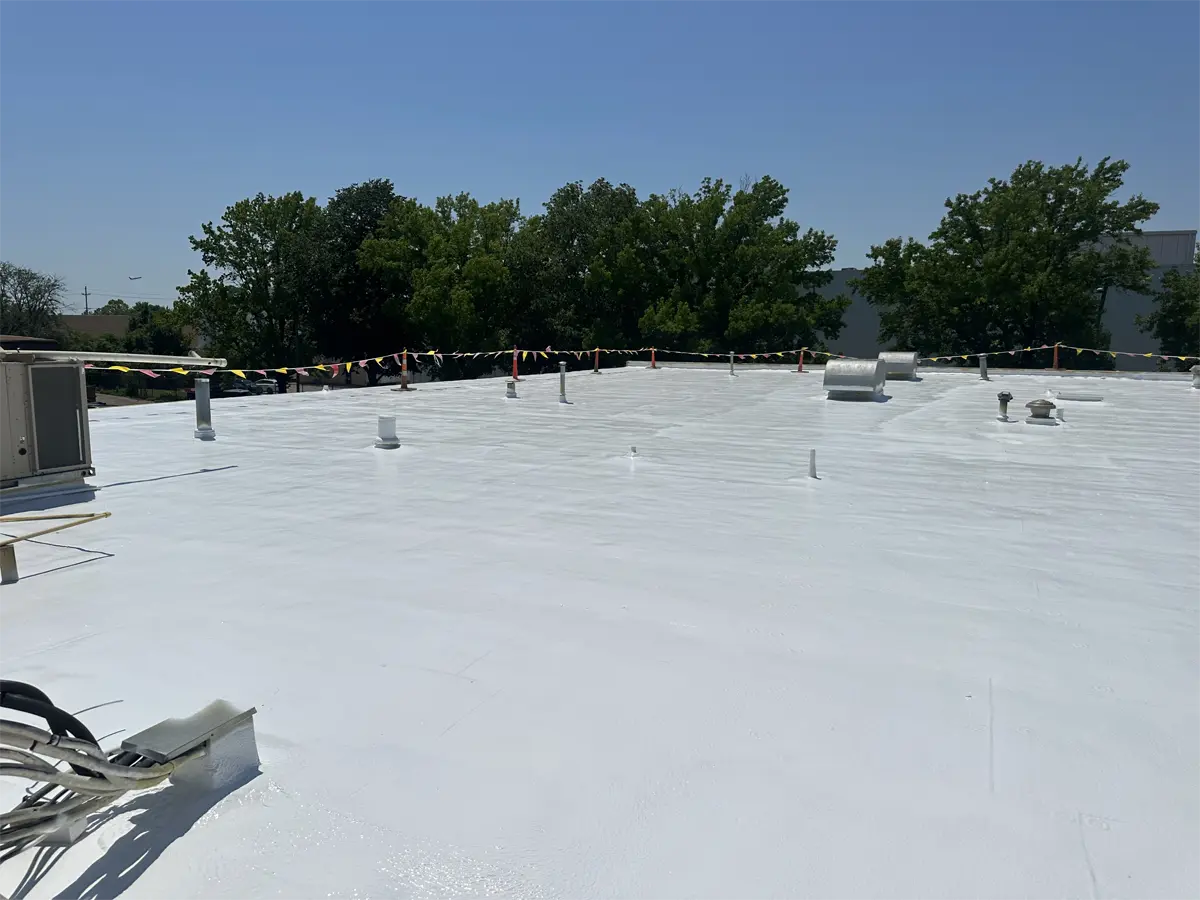

    Foam-Gard™ Gallery
